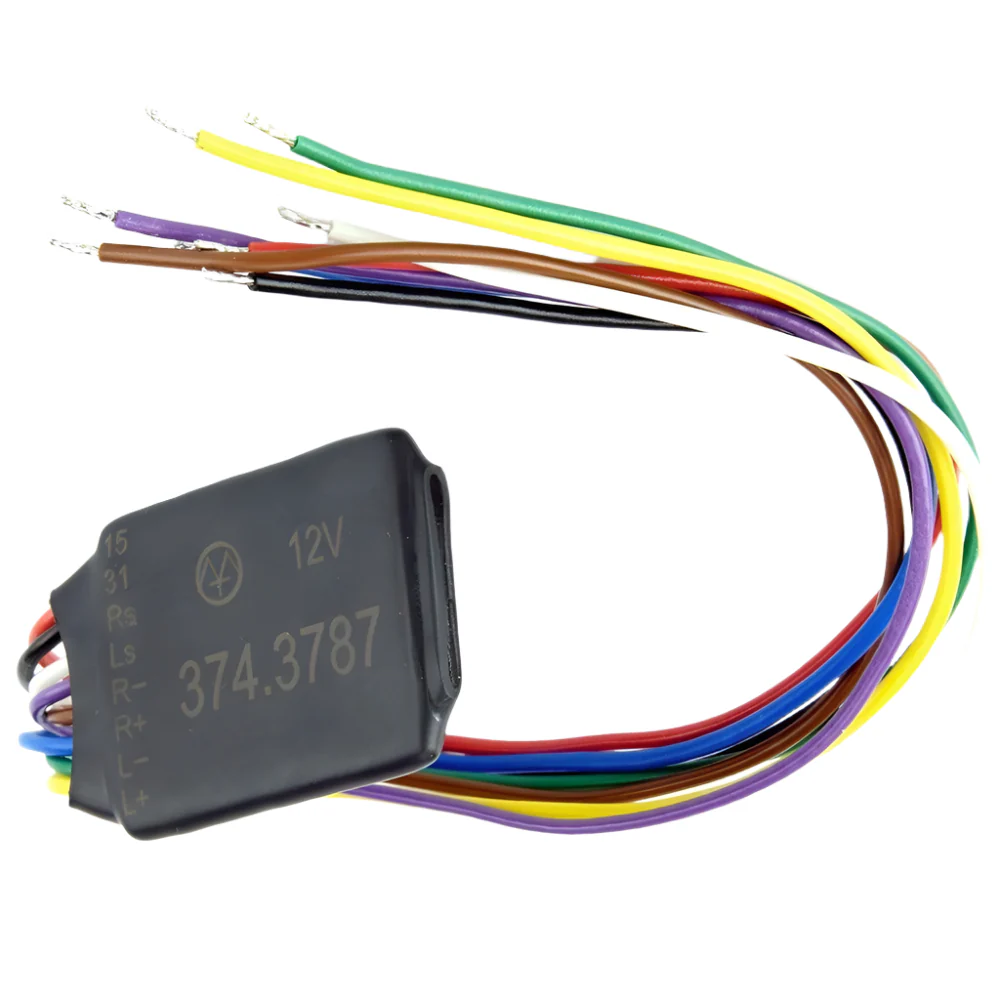

Lane Changer Flasher Timer

Many column-mounted indicator switches make a momentary connection just before they latch in either left or right position.

This unit uses this momentary ‘pulse’ to switch on the indicator for three flashes.

NOTE: Your vehicles indicator lamps or flasher relay must have a permanent earth for this device to work.

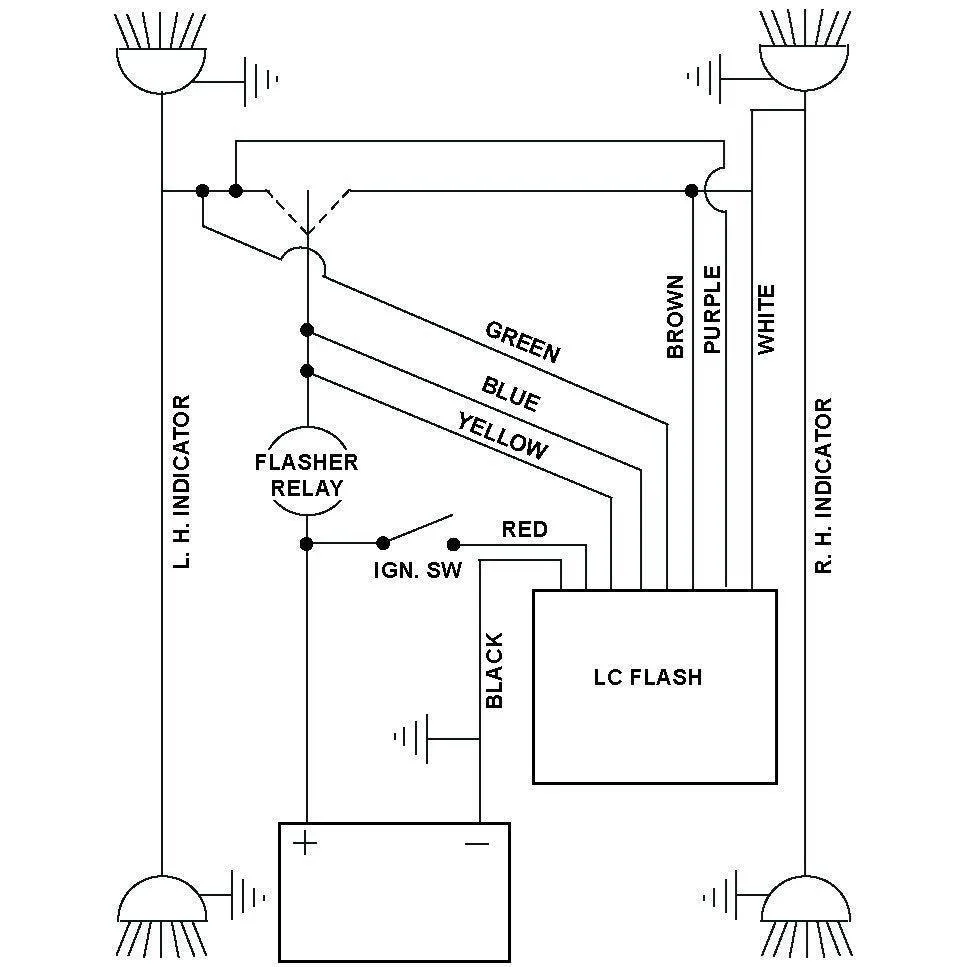

CONNECTIONS

RED - Ignition +12 volts.

BLACK -  Earth

WHITE -  Right Indicator Lamps Circuit

PURPLE - Left Indicator Lamps Circuit

BLUE - Connect into feed to Right side Indicator switch

YELLOW - Connect into feed to Left side Indicator switch

BROWN - Connect into output of Right side Indicator switch

GREEN.- Connect into output of Left side Indicator switch.

LANE CHANGE FLASHER TIMER #LCFLASH
