The Story

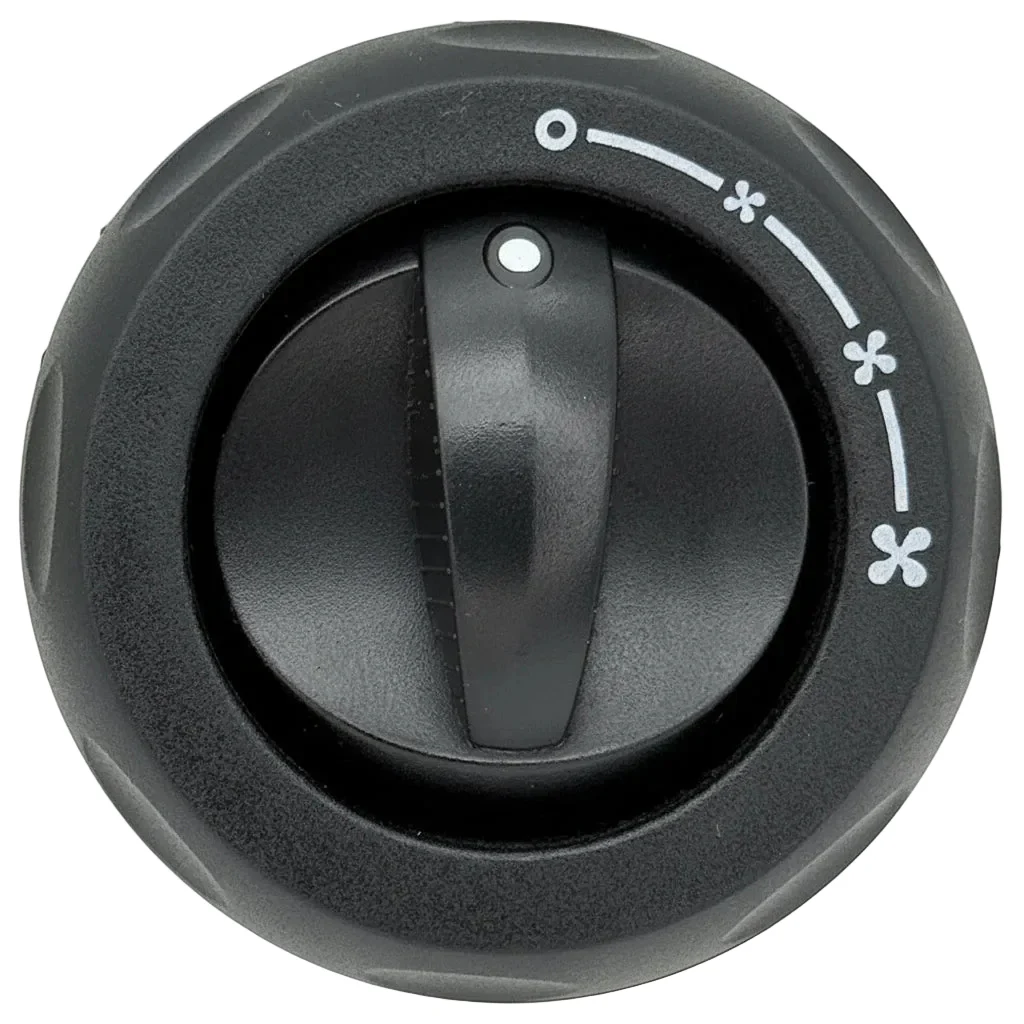

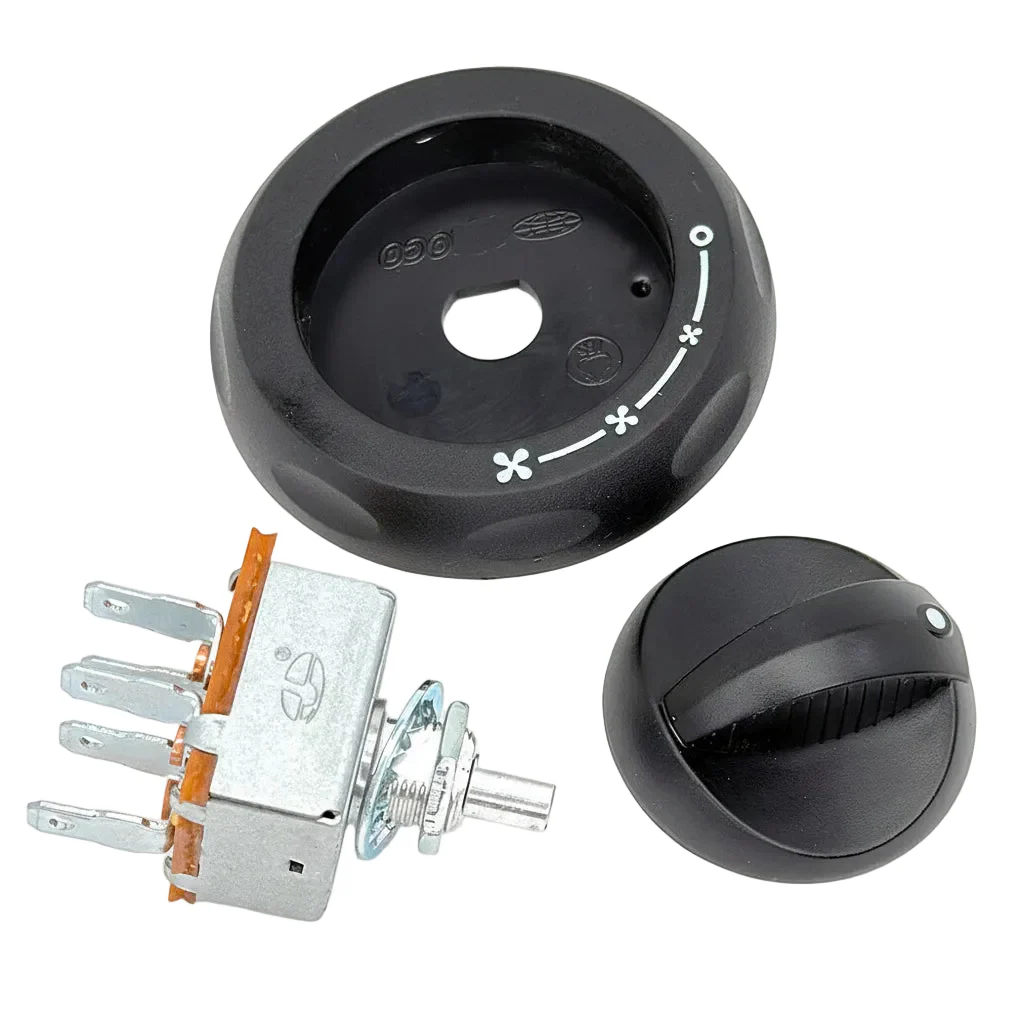

This 4 position, fan switch will run your 3 speed heater fan without complicated relay wiring.Ā
Fits in 11mm hole. 1/4" Spade terminals.
63mm dia bezel, 23mm front projection, 35mm rear projection.
It also has a live out terminal for a warning light or compressor control system.Ā
Wiring Connections B-Live feed to switch, L-Speed 1, M-Speed 2, H-Speed 3, C-Live out in any on position (e.g on warning light)
Rated for 20 amps.
Note: Your motor must have windings for three speed operation.
3 SPEED FAN SWITCH #SWFAN6
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This 4 position, fan switch will run your 3 speed heater fan without complicated relay wiring.Ā
Fits in 11mm hole. 1/4" Spade terminals.
63mm dia bezel, 23mm front projection, 35mm rear projection.
It also has a live out terminal for a warning light or compressor control system.Ā
Wiring Connections B-Live feed to switch, L-Speed 1, M-Speed 2, H-Speed 3, C-Live out in any on position (e.g on warning light)
Rated for 20 amps.
Note: Your motor must have windings for three speed operation.
3 SPEED FAN SWITCH #SWFAN6
